For beer, connection possibility of flat spear Type A Stainless steel dispense head, beverage side with connection G 5/8 ", CO² side with G 3/4" Or for foreign countries G 5/8 ", G 5/8" with one or two lip valves
For beer, connection possibility of well spear Type S Stainless steel dispense head, beverage side with connection G 5/8 ", CO² side with G 3/4" Or for foreign countries G 5/8 ", G 5/8" with one or two lip valves
Beverage Hose, TUBALCO SK 017-027: The flexible PE solutionIn addition to excellent properties in respect of odor and taste, the made of soft RAU-PE 940 polyethylene tubing drinks is characterized by its extreme flexibility. The hose is suitable for soft drinks such as Coca-Cola, as well as beer and wine. HosesHoses and Pythons: Cool solutions for your drinks For dispensing systems and beverage vending machines which RAUALCO and TUBALCO beverage hoses are the first choice.The hose solutions ensure that both alcoholic beverages such as beer and wine as well as soft drinks such as Coca-Cola are transported without loss of quality. The out of PVC and PE finished beverage hoses are tasteless and odorless, physiologically harmless and easy to clean. Thanks to the recipes specially selected beverages lines meet the different national food regulations (BfR / FDA / Manual 1227). Assembled to REHAU Pythons of protection and cooling of RAUALCO and TUBALCO beverage hoses is further improved. It allow the cold-bridge free pythons that from cellar to tap a constant temperature is ensured.
For beer, connection possibility of flat spear Type A Stainless steel dispense head, beverage side with connection G 5/8 ", CO² side with G 3/4" Or for foreign countries G 5/8 ", G 5/8" with one or two lip valves
For beer, connection possibility of trilobe, flat spear, Type G Stainless steel keg, drinks side with connection G 5/8 ", CO² side with G 3/4" or abroad G 5/8 ", G 5/8" with one or two lip valves.
For beer, connection possibility of trilobe, flat spear Type G Stainless steel dispense head, beverage side with connection G 5/8 ", CO² side with G 3/4"Or for foreign countries G 5/8 ", G 5/8" with one or two lip valves
For beer, connection possibility of well spear Type S Stainless steel dispense head, beverage side with connection G 5/8 ", CO² side with G 3/4" Or for foreign countries G 5/8 ", G 5/8" with one or two lip valves
Dispense head, well, Type S system For beer, possibility of connecting spear, well, Type S Stainless steel keg, drinks side with connection G 5/8 ", CO² side with G 3/4" or abroad G 5/8 ", G 5/8" with one or two lip valves

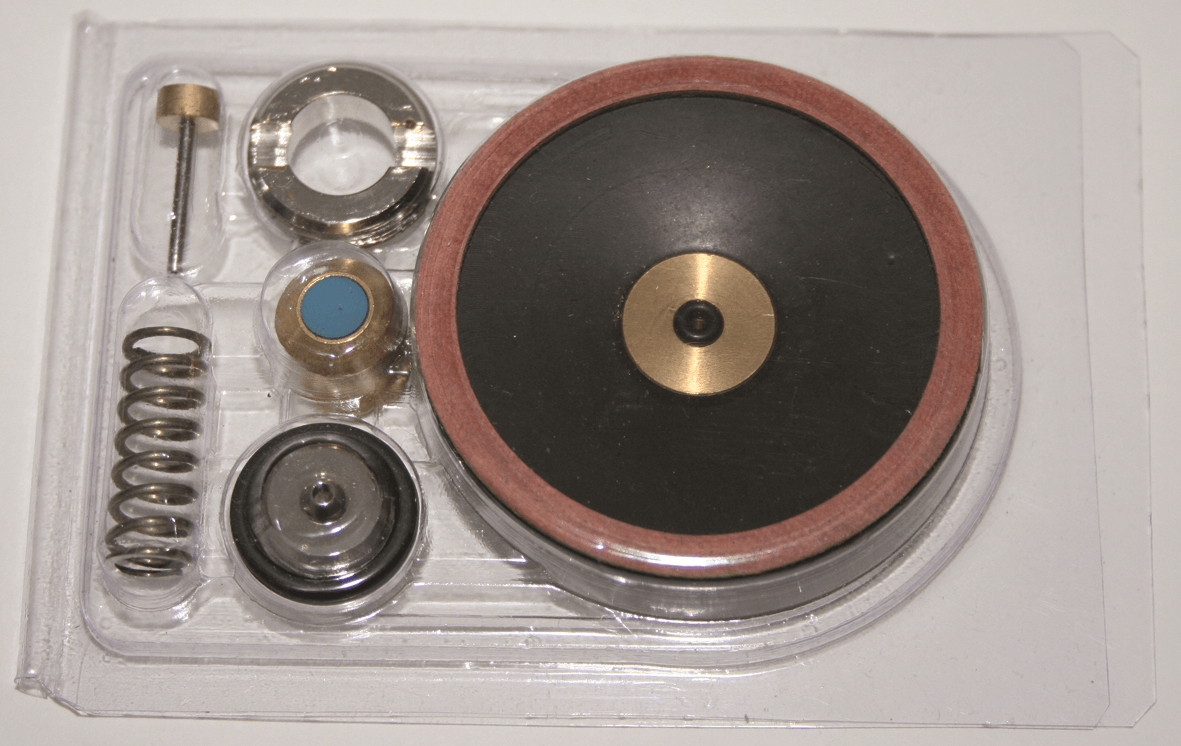

reducer
or main reducer
- Cylinder pressure regulator
- Using Content nanometers
- With external safety valve
- one tap
- Pressure range 0-6 bar, cordoned 4 bar- CO2 connection 3/4 inch (EU), or 1/2 inch
reducer
or main reducer
- Cylinder pressure regulator
- Using Content nanometers
- With external safety valve
- One tap
- Pressure range 0-6 bar, cordoned 3 bar
reducer
or main reducer
- Cylinder pressure regulator
- Using Content nanometers
- With external safety valve
- Two taps
- Pressure range 0-6 bar, cordoned 4 bar
- CO2 connection 3/4 inch (EU), or 1/2 inch
reducer
or main reducer
-
Cylinder pressure regulator
-
Using Content nanometers
-
With external safety valve
-
one tap
-
Pressure range 0-6 bar, cordoned 3 bar
-
CO2 connection 3/4 inch (EU), or 1/2 inch
Please select appropriate length and barrel type. All flat spear types are for beer and for containers with a working pressure suitable to 3 bar. Flat spears with security are marked with a star-shaped or triangular lasering on the housing and the safety hook. The safety hook ensures that the spears can not removed without special tools from the KEG. If the container is under pressure the spear can not jump out of the KEG, the hook in the riser prevents the rising. The spears are mostly colored, by the rivet, or the seal.
Please select appropriate length and barrel type.All flat spear types are for beer and for containers with a working pressuresuitable to 3 bar.Flat spears with security are marked with a star-shaped or triangular lasering on the housing and the safety hook.The safety hook ensures that the spears can not removed without special tools from the KEG.If the container is under pressure the spear can not jump out of the KEG, the hook in the riser prevents the rising.The spears are mostly colored, by the rivet, or the seal.With security lockThread 2''-14 TPI
With solid safety latch
resting sealEasy (dis) assembly and maintenance
Please select appropriate length and barrel type. The G type spear is in the structure with the A type identically. Distinguish alone to the A Type, the trilobe spear is not round, but triangular. Trilobe spears with security are marked with a star-shaped or triangular lasering on the housing and the safety hook. The safety hook ensures that the spears can not removed without special tools from the KEG. If the container is under pressure the spear can not jump out of the KEG, the hook in the riser prevents the rising. The spears are mostly colored, by the rivet, or the seal.
Please select appropriate length and barrel type.The G type spear is in the structure with the A type identically.Distinguish alone to the A Type, the trilobe spear is not round, but triangular.Trilobe spears with security are marked with a star-shaped or triangular lasering on the housing and the safety hook.The safety hook ensures that the spears can not removed without special tools from the KEG.If the container is under pressure the spear can not jump out of the KEG, the hook in the riser prevents the rising.The spears are mostly colored, by the rivet, or the seal.
With solid safety latchresting sealThread 2''-14 TPI Easy (dis) assembly and maintenance
Please select appropriate length and barrel type. Depending on the manufacturer (Micro Matic, DSI) safety hooks are placed differently on the fitting. The safety hook ensures that the spears can not removed without special tools from the KEG. If the container is under pressure the spear can not jump out of the KEG, the hook in the riser prevents the rising. The spears are mostly colored, by the rivet, or the seal.
Please select appropriate length and barrel type. Depending on the manufacturer (Micro Matic, DSI) safety hooks are placed differently on the fitting. The safety hook ensures that the spears can not removed without special tools from the KEG. If the container is under pressure the spear can not jump out of the KEG, the hook in the riser prevents the rising. The spears are mostly colored, by the rivet, or the seal. With security lockThread 2''-14 TPI 2 camsInterior sealing ringEasy (dis) assembly and maintenance

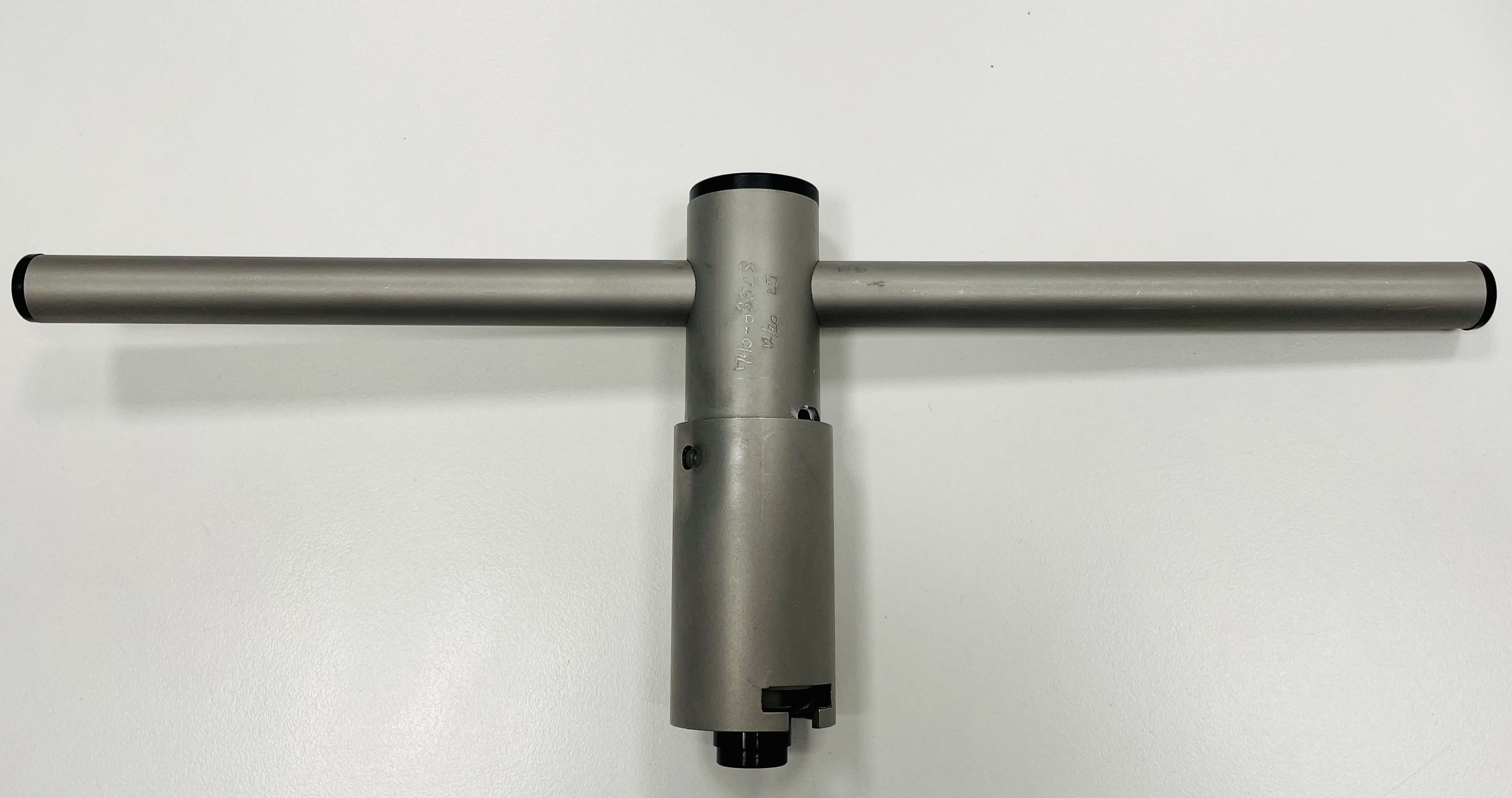

basket valve system
